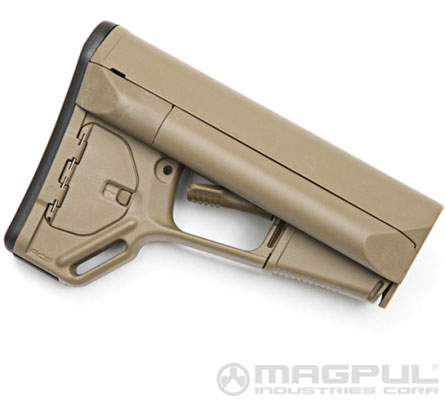

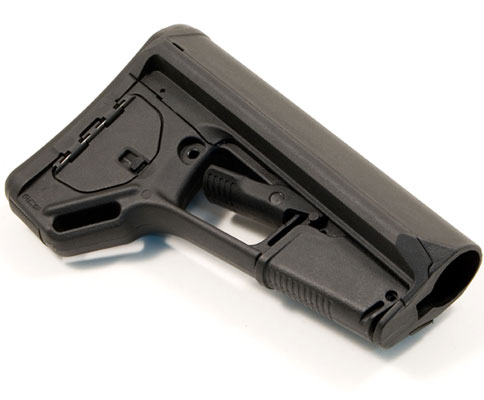

Magpul ACS Carbine Stock Mil-Spec

The patent-pending Magpul ACS (Adaptable Carbine/Storage) – Mil-Spec Model is a drop-in replacement butt-stock for carbines using mil-spec receiver extension tubes. A streamlined, anti-snag profile shields the release latch to prevent accidental activation and the extra-power lock mechanism uses a premium chrome-silicon spring to avert auto-collapse failure by resisting spring relaxation. Similar to the Magpul CTR™, the ACS also features a supplemental friction lock system that minimizes wobble* for enhanced weapon stability and accuracy. Dual, rear accessible, water-resistant battery storage tubes and an integral storage compartment in the butt of the stock provides multiple storage options. The ACS comes standard with a 0.30″ thick rubber butt-pad which provides positive shoulder purchase to prevent slippage even with body armor or modular gear.

NOTE: There are two basic sizes of M4 Carbine receiver extensions (buffer tubes): mil-spec and commercial-spec. If you have a commercial-spec extension on your rifle, make sure to order the Commercial-Spec ACS. Please see the “Related Info” section above to determine which tube you have.

Made in the U.S.A.

* Friction lock performance may vary depending on the receiver extension’s dimensional tolerances.

Features

Mounts on military-spec carbine receiver extension tube (not included) from manufacturers such as Colt, Armalite, S&W, LMT, and others
Supplemental friction lock minimizes accuracy robbing wobble
Premium chrome-silicon lock spring provides positive locking and long service life
Sloping cheek weld provides a wide contact surface for user comfort
Shielded release latch prevents snagging and accidental operation
Replaceable 0.30″ Rubber Butt-Pad offers an anti-slip surface and increases impact protection
Compatible with Magpul ASAP® and other receiver-mount sling attachments
Metal strike plate provides a hardened striking point on toe of stock
Two water-resistant battery storage tubes located on the left and right sides of the stock
* Each tube will store up to three CR123 lithium or two AA batteries
*Tubes are accessible from the rear via a tethered, hand-removable rubber plug
Storage compartment in tail of stock with positive latching access door on right hand side
Sling Mounts
*Mid – Optional QD Sling Mount accommodates up to 1.5″ push-button swivels (NOTE: QD Sling Mount Sockets are sold seperately.)
*Rear/Bottom – 1.00″ sling loop

Specifications**

ACS, Mil-Spec Carbine Stock (w/ Rubber Butt-Pad, 0.30″)
Weight, Stock: 0.86 lb.
Weight, w/ Rec. Extension: 1.16 lb.
Length, Stock: 7.93 in.
LOP Adjustment Range: 3.3 in.
LOP, M4 Collapsed: 11.45 in.
LOP, M4 Extended: 14.75 in.

* Friction lock performance may vary depending on the receiver extension’s dimensional tolerances.

** Specifications based on standard-length (flat-back) M4 Carbine Receiver Extension and may vary depending on tube manufacturer.

***Standard Rubber Butt-Pad, 0.30″ weight: 0.09 lb. Optional Extended Rubber Butt-Pad, 0.55″ (weight: 0.12 lb.) or Enhanced Butt-Pad, 0.70″ (weight: 0.15 lb.) may be used with either Mil-Spec or Commercial-Spec ACS stocks.
