Description

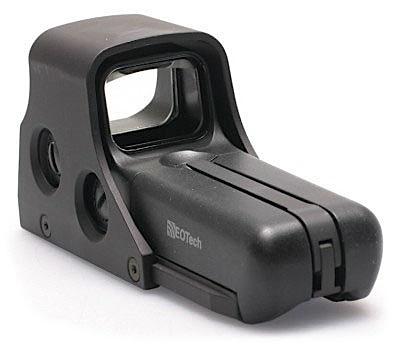

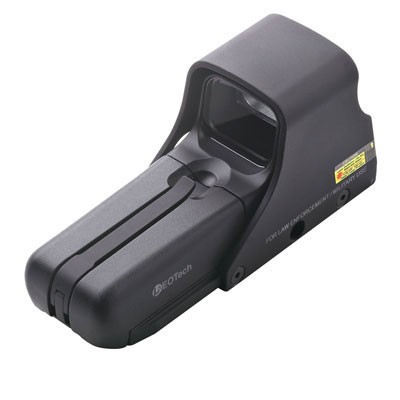

L-3 Insight Technologies, Inc. EO-512.A65/1 Holographic Weapon Sight, Black

The EOTech 512 is quickly becoming one of the most popular sights in the EOTech Holographic Weapons System (HWS) line. The model 512 is similar in many respects to the EOTech 511, but uses readily available and affordable AA alkaline or lithium batteries. Thirty brightness levels ensure proper brightness control in either low light or very bright sunlight. An on-board microprocessor provides automatic battery check indicator, up/down brightness scrolling and programmable auto shutdown features. All electronics are fully encapsulated in shock absorbing resin compound.

L-3 Insight Technologies, Inc. EO-512.A65/1 Holographic Weapon Sight, Black Features:
• Optics: Transmission holography – 100% parallax free
• Magnification: 1x unlimited eye relief
• Temperature: -20 to 150F with lithium batteries; -40 to 140F with alkaline batteries
• Sealing: Fogproof internal optics
• Color/Finish: Non-reflective black with hard coat finish
• Adjustment (per click): 0.5″ at 100 yards
• Adjustment Range: +/- 40 MOA travel
• Mount: 1″ Weaver dovetail/Picatinny rail (Mil spec 1913)
• Return to Zero: Repeatable to 1 MOA after remounting
• Optical Surfaces: Anti-glare coatings
• Window Dimensions: 1.20″ x 0.85″ (30 x 23 mm)
• Front Window Material: 1/8″ solid glass
• Rear Window Material: Shatterproof laminate (3/16″ thick)
• Field of view (100 yards): 30 yards (28m) at a 4″ eye relief
• Standard Reticle: 65MOA ring with quadrant ticks with a 1MOA Aiming dot
• Reticle Contrast Ratio: 28,000:1 brightest to lowest
• Power Source: 2 AA alkaline, lithium or rechargeable batteries
• Battery Life: 1000 continuous hours at nominal setting 12 with lithium battery; 600 continous hours at setting 12 with alkaline battery
• Brightness Settings: 30 settings with scrolling feature
• Auto Battery Check Indicator: Flashing reticle upon startup if batteries are at 20% of battery life.
• Auto Shutdown: At 8 hours – programmable to 4 hours
• Waterproof & Submersible To 10 ft depth
• Battery: AA Lithium or Alkaline
• Dimensions: 5″ x 8″ x 2.25″
• Reticle 65 MOA ring with 1 MOA dot
• Weight: 11.5 ounces (326 grams)
• Warranty: Manufacturer 2-Year warranty
