Magpul STR Carbine Stock Mil-Spec Model

Magpul STR Carbine Stock Mil-Spec Model

Description

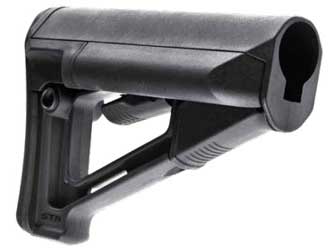

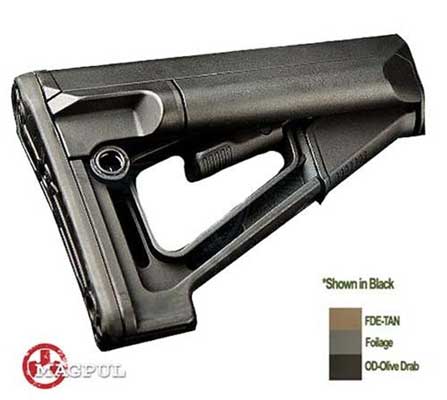

Magpul STR Carbine Stock Mil-Spec

The Magpul STR (Storage/Type Restricted) is a drop-in replacement butt stock for AR15/M16 carbines using mil-spec sized receiver extension tubes. A storage-capable version of the CTR®, the STR has improved cheek weld and two water resistant battery tubes on a compact, reinforced polymer A-frame design. A shielded operation lever and supplemental friction locking system prevent accidental operation and minimize excessive stock movement for enhanced weapon stability and accuracy.*

The STR incorporates two integral sling loops, a reversible push-button QD sling mount, and a replaceable 0.30″ rubber butt-pad which provides positive shoulder purchase to prevent slippage even with body armor or modular gear.

NOTE: There are two basic sizes of M4 Carbine receiver extensions (buffer tubes): mil-spec and commercial-spec. If you have a commercial-spec extension on your rifle, make sure to order the Commercial-Spec STR. Please see the “Related Info” section above to determine which tube you have.

Made in the U.S.A.

Features

  • Mounts on mil-spec sized carbine receiver extension tube (not included) from manufacturers such as Colt, Armalite, S&W, LMT, and others (please see the note below)
  • Two water-resistant battery storage tubes located on the left and right sides of the stock
  • Each tube will store up to two (2) CR123A lithium or AA batteries

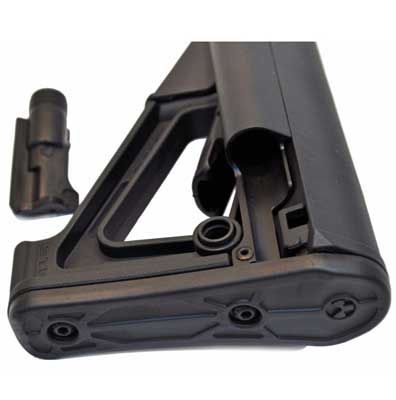

  • Tubes are accessible from the rear in any stock position via a hand-removable rubber plug
  • Supplemental friction lock minimizes accuracy robbing wobble*
  • Premium chrome-silicon lock spring provides positive locking and long service life
  • Sloping cheek weld provides a wide contact surface for user comfort
  • Shielded release latch prevents snagging and accidental operation
  • Replaceable 0.30″ Rubber Butt-Pad offers an anti-slip surface and increases impact protection
  • Compatible with Magpul ASAP® and other receiver-mount sling attachments
  • Sling Mounts
    *Rear – Reversible QD swivel sling mount fits up to 1.5″ push-button swivels (swivel not included)
    *Rear/Bottom – 1.25″ sling loops

Specifications**

  • STR, Mil-Spec (stock configuration)
  • Weight: 0.77 lb.
  • Weight, w/ Rec. Extension: 1.02 lb.
  • Length, Maximum: 7.30 in.
  • Width, Maximum: 2.58 in.
  • LOP Adjustment Range: 3.25 in.
  • LOP, M4 Collapsed: 11.10 in.
  • LOP, M4 Extended: 14.35 in.

* Friction lock performance may vary depending on the host receiver extension’s dimensional tolerances.

** Specifications based on standard-length (flat-back) M4 Carbine receiver extension and may vary depending on tube manufacturer.

***Standard Rubber Butt-Pad, 0.30″ weight: 0.08 lb. Optional Extended Rubber Butt-Pad, 0.55″ (weight: 0.11 lb.) or Enhanced Butt-Pad, 0.70″ (weight: 0.13 lb.) may be used with either Mil-Spec or Commercial-Spec STR stocks.

Additional information

Weight 1 lbs
Dimensions 0.0 × 0.0 × 0.0 in
Manufacturer Name

Manufacturer Part Number
